Abstract shapes and patterns #

Basic shapes #

In p5.js, the most basic shapes are ellipse(), circle(), rect() and square(). They can work with relatively few parameters and give us an opportunity to visualize quickly.

Let's begin by setting up a scene.

function setup() {
  createCanvas(windowWidth, windowHeight);
  noFill();
}

Now we will work in the draw function.

function draw() {
	rect(width/2, height/2, 20);
}

There is one thing that is quite strange, if you try to change to width from 20 to width, you'll see that it draws from one of the corners. Go to the docs and find out what you need to add.

rectMode(CENTER);

The rectangle has now a width of 20 pixels and is shown in the middle of the screen. Lets make more then 1 rectangle, adjust the function to:

function draw() {
	rectMode(CENTER);
	rect(width/2, height/2, 20);
	rect(width/2 + 20, height/2, 20);
	rect(width/2 - 20, height/2, 20);
}

Neat! But if we want a bunch of them it is easier to make a loop. The most straightforward way to do this is a for-loop. Is goes like this:

for (let x = 0; x < 10 ; x++) {
	// code to be executed
}

This code will execute something 10 times (starting from 0, ending at 9). Now adjust the draw function to:

function draw() {
    rectMode(CENTER);
    for (let x = 0; x < 10; x++) {
      rect(width / 2 + x * 20, height / 2, 20);
    }
  }

Now we can try to make a whole line of cubes in the center of the screen. We have to change the parameters 0 and 10 so that it starts at 0 and ends at the end of the screen. Try to do it yourself first! (ps. you can also change the 'width / 2 + x * 20'-part to make it easier.)

	for (let x = 0; x < width; x++) {
		rect(x * 20, height / 2, 20);
	}

What do we see now?

The row starts with halve a square, that is not neat! Lets delete the 'rectMode(CENTER)'-function.

There is another thing terribly wrong. We only see part of the rectangles that we have drawn. To fix this we need to update the for-loop again.

for (let x = 0; x < width; x+=20) {
      rect(x, height / 2, 20);
}

We were drawing a rectangle for every pixel in the width of the screen. As the rectangle is 20-pixels wide, it is drawn beyond the canvas. Now that is fixed we want to create a whole canvas.

Try to come up with a loop within a loop so we can also adjust the y-value. This is the function to draw the rectangle: rect(x, y, 20);

for (let x = 0; x < width; x += 20) {
	for (let y = 0; y < height; y += 20) {
		rect(x, y, 20);
	}
}

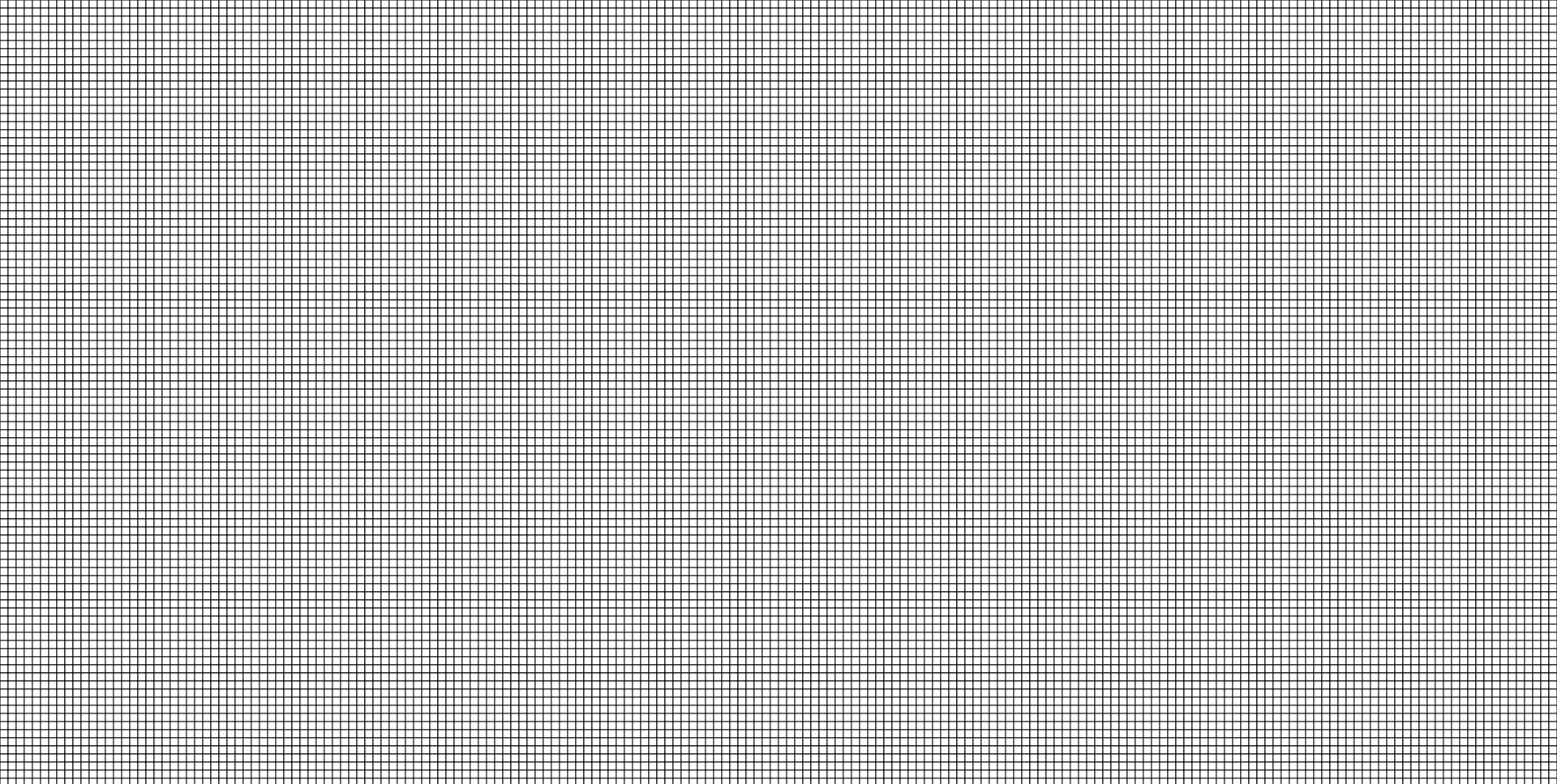

We have a grid!

Exercise #

Try to give every cube a different color.

Exercise #

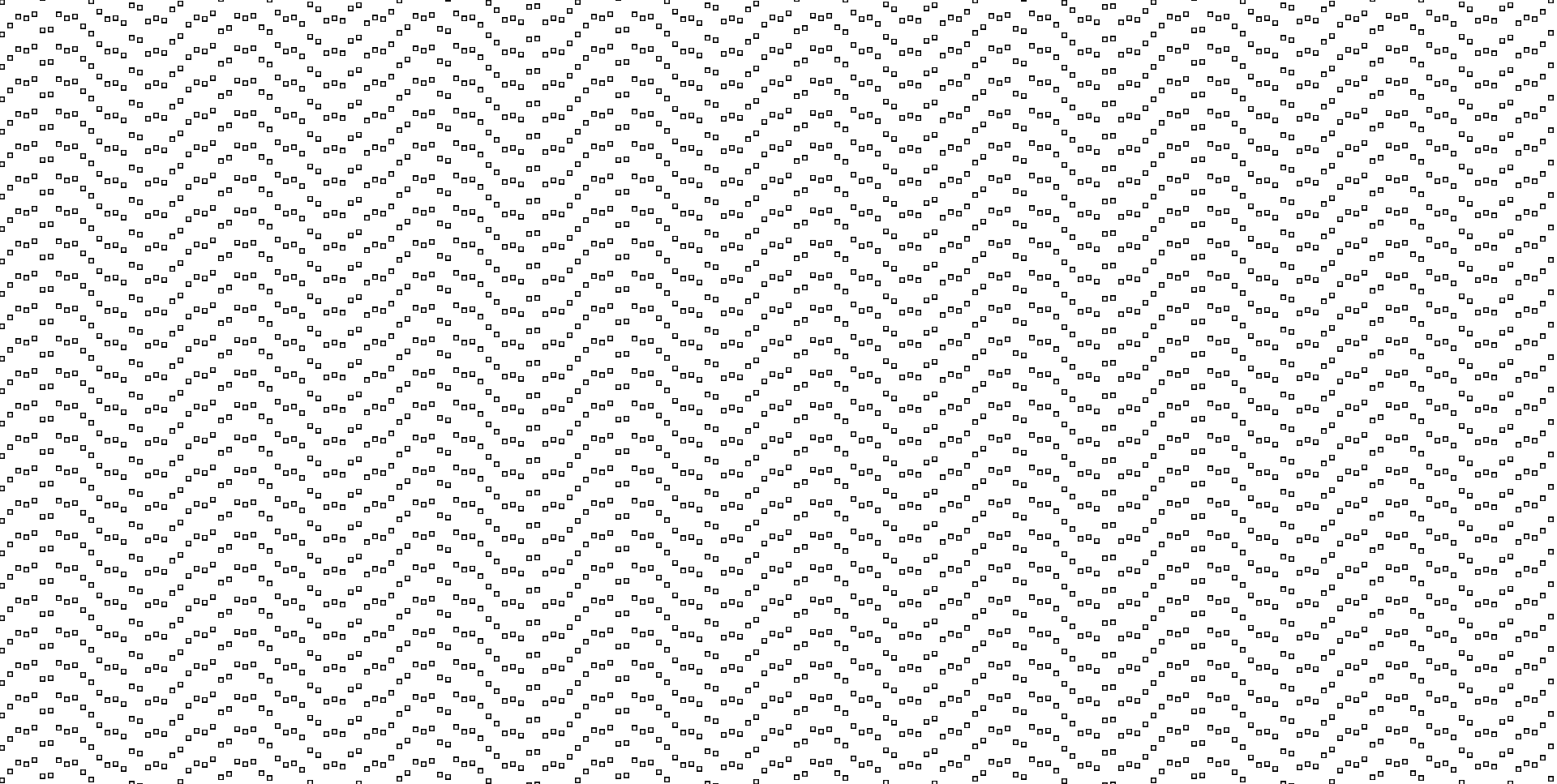

Try to offset the cubes with a sine-wave in the y-direction.

Experiment #

Experiment a bit! e.g.

• change the color depending on the position
• change the figures (one is a circle, two a square)
• randomize the colors
• change the size

Hard Exercise #

Try to rotate the cubes so that the rotation depends on the position.

Tip: use push() and pop(). You can also find help here: Stackoverflow or here: (YouTube tutorial)[https://www.youtube.com/watch?v=maTfm84mLbo]
